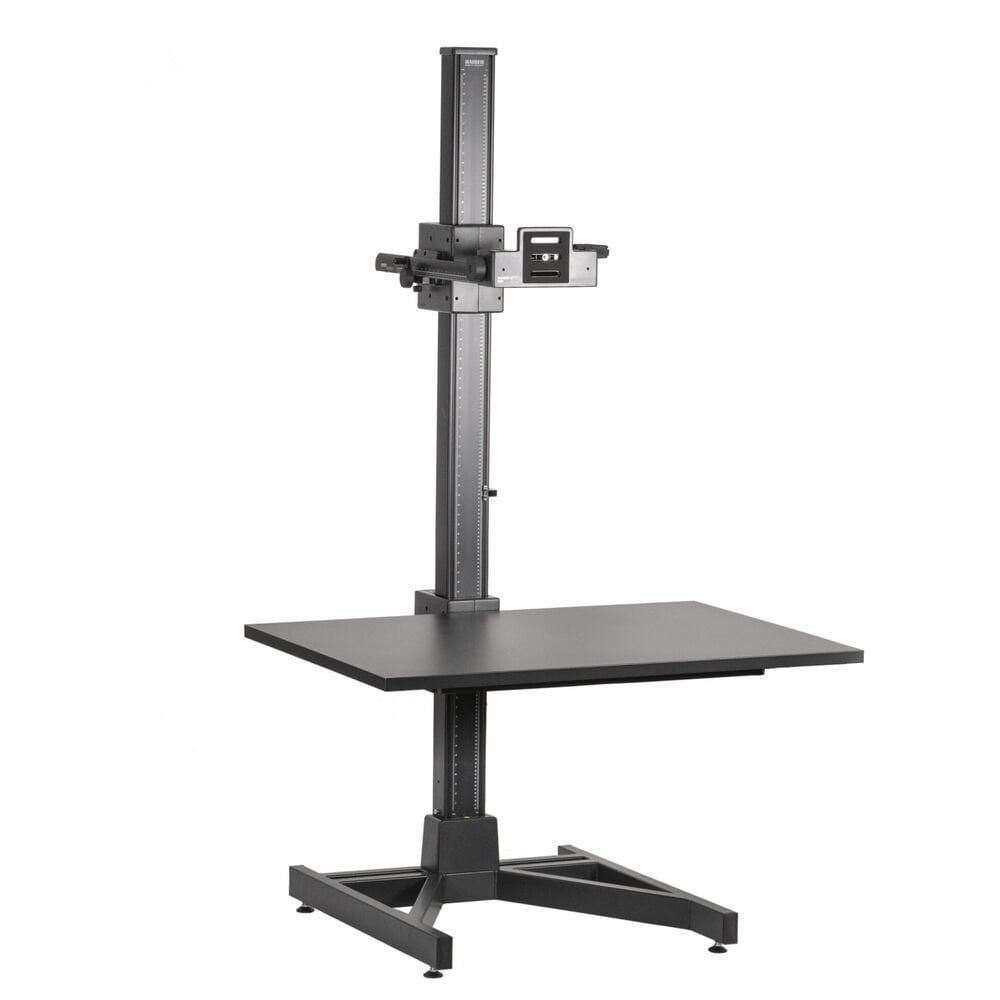

RSP 2motion Copy Stand

Code no: 5710

Heavy-duty copy stand for digital and analogue image capturing work with two-level motor-driven adjustment. Accepts originals up to 129 x 89 cm (50.8 x 35 in.). Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales. Column foot made of double strutted steel tube. Cast aluminum base for bolting the column, with built-in spirit level. Four levelling feet.

Detachable base board made of sheet steel with stabilizing substructure.

Camera carrier made of cast aluminum, horizontally adjustable via specially shaped parallel guides with gear rack and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate can be swiveled by +/- 90° with high-precision fine adjustment. Built-in spirit level. Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Anti-collision device. Cable remote control.




Specifications:
Total height: 227 cm (89.4 in.)
Maximum working span: 160 cm (63 in.)
Column cross section: 12 x 8 cm (4.7 x 3.1 in.)
Maximum load: on camera carrier: 10 kg (22 lbs.)
                          on base board: 15 kg (33 lbs.)
Base board: 129 x 89 cm (50.8 x 35 in.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 3/8" / 1/4"
Required floor space (WxD): 129 x 164 cm (50.8 x 64.6 in.)
